Carrier Vector 8500R - Hyundai Translead Reefer Trailer (580)

General Specifications

Body and Chassis Features

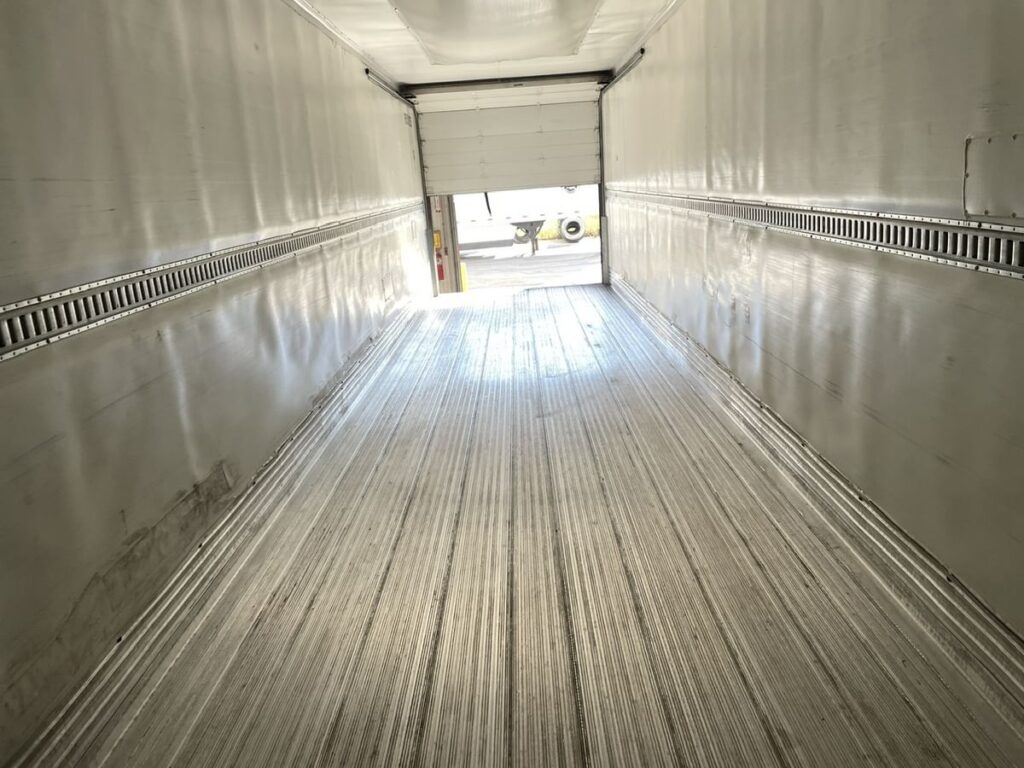

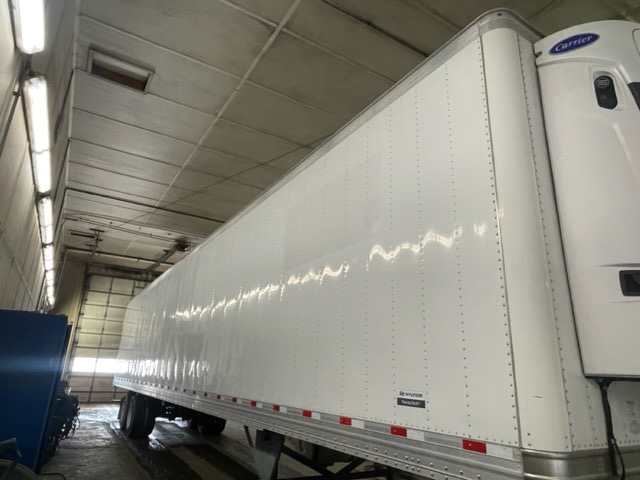

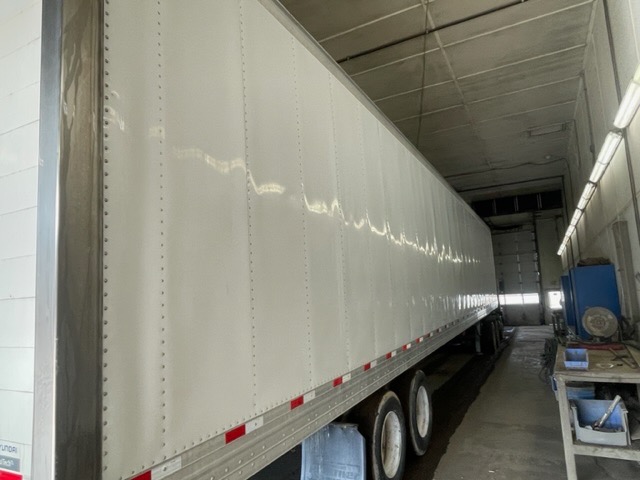

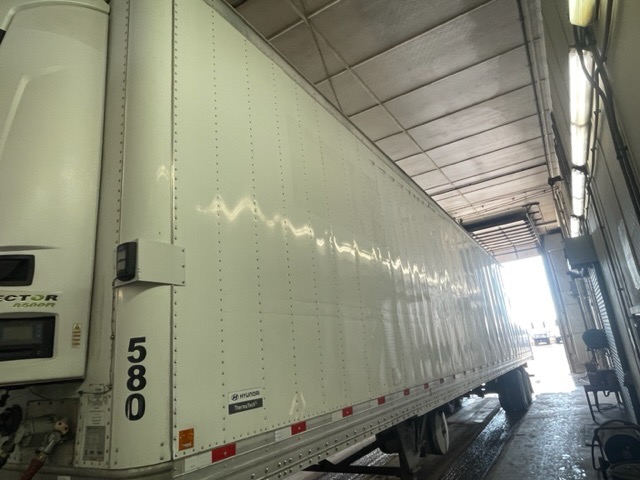

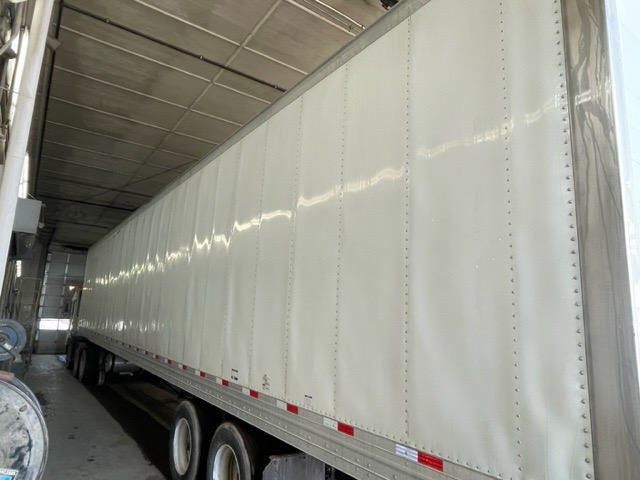

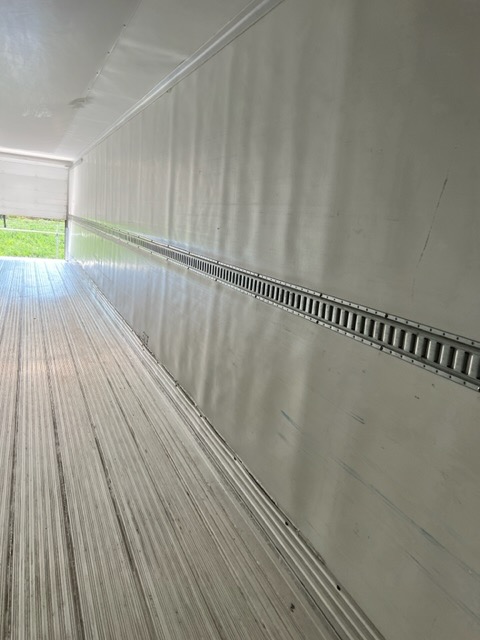

Side Sheets: Flat 0.04″ pre-painted white aluminum side sheet.
Side Posts: Extruded aluminum “Z” side posts on 12″ centers nose through support gear and 24″ centers support gear to rear of trailer.
Roof: One piece, 0.03″ thick aluminum, tension leveled prior to installation. Special corrugated roof sheet design allows roof to expand and contract without foam delamination or structural weakening of roof.
Roof Bows: Extruded aluminum I-beam on 32″ centers pre-bonded to roof sheet.
Front Wall: Stainless steel front impact plate and pre-painted 0.04″ white aluminum sheets with 6″ radius. Large opening refrigeration unit bracing.

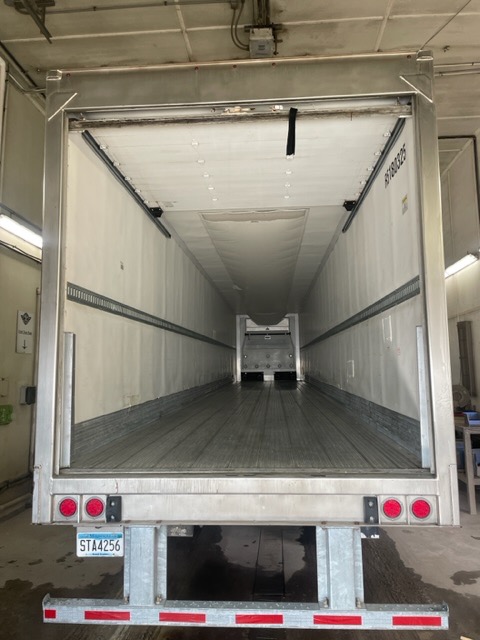

Rear Frame: Stainless steel rear frame including corner posts, hinge butts, door header, and rear sill. Stop/tail/turn signals are fully recessed in the rear sill. Hot-dipped galvanized high-tensile steel bolt-on under-ride protection.

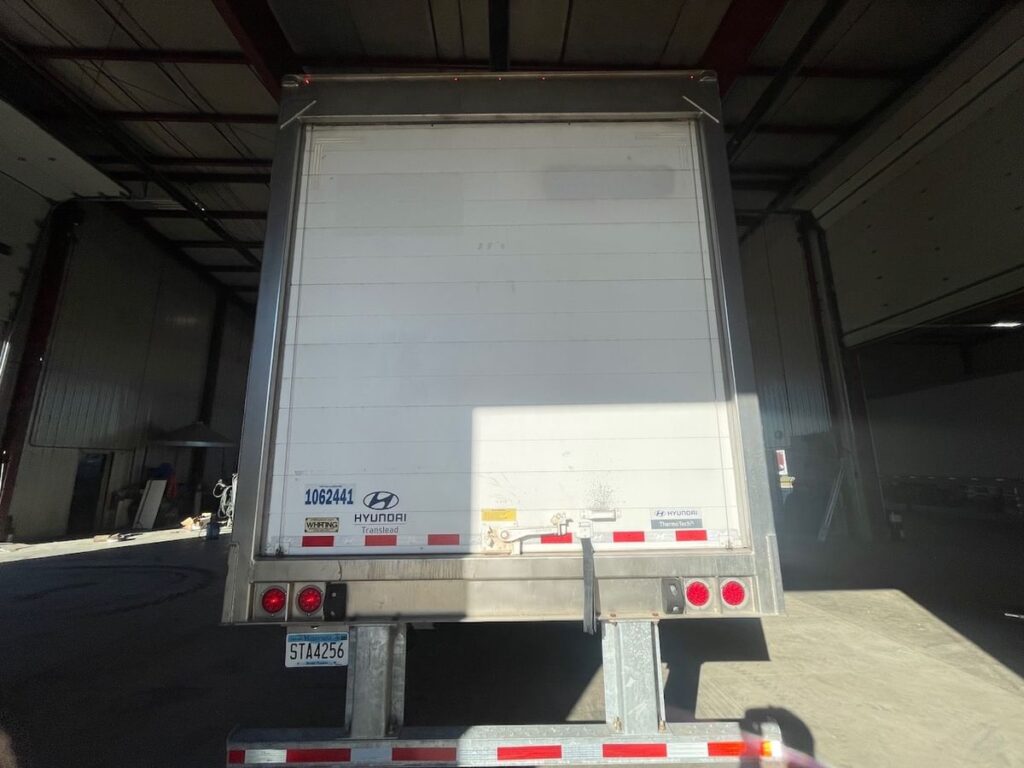

Rear Doors: Advanced option roll door
Insulation: Injection foamed urethane insulation. Sides, floor and roofing 2″ thick. Rear door 3″ thick. Front wall 4″ thick

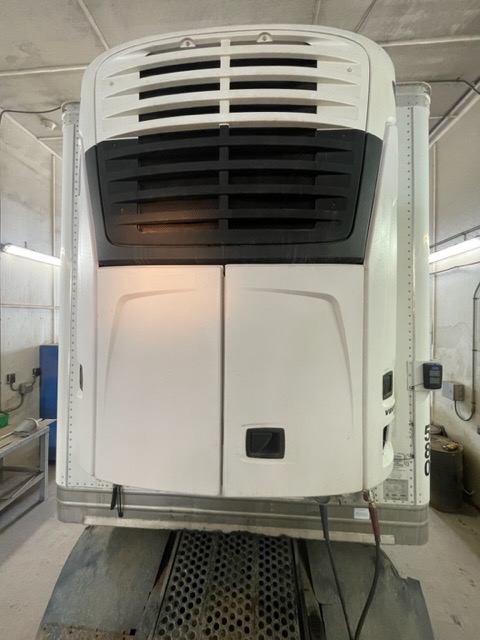

Refrigeration: Heavy-duty mounting frame and bracing provided for large opening nose mounted unit

Key Features & Specifications

Engine: Kubota 2.2L V2203L smart diesel engine, 24.4 HP at 1,800 RPM.
Refrigeration System: Diesel-electric system with a fully hermetic electric scroll compressor and R-452A refrigerant.
Cooling Capacity:
- 60,000 BTU/hr at 35°F evaporator return air.
- 35,000 BTU/hr at 0°F evaporator return air.
- 24,000 BTU/hr at -20°F evaporator return air.

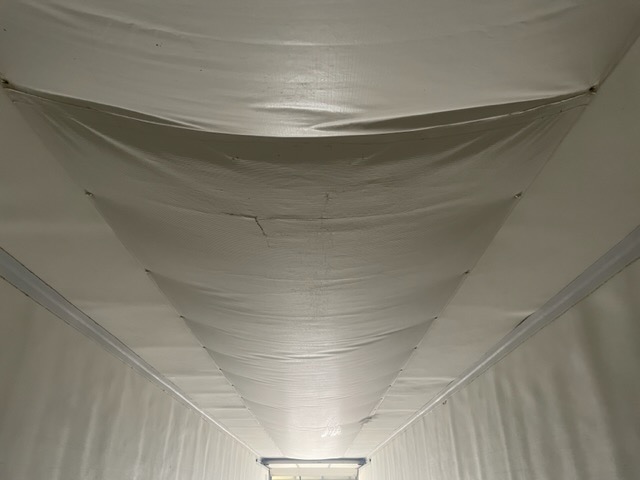

Evaporator Airflow: 3,100 cfm (5,270 m³/hr).
Generator: Direct-driven, high-output 21 kVA generator.
Electric Standby: Standard feature for fuel-free, quiet, and emissions-free operation when connected to an external power source.

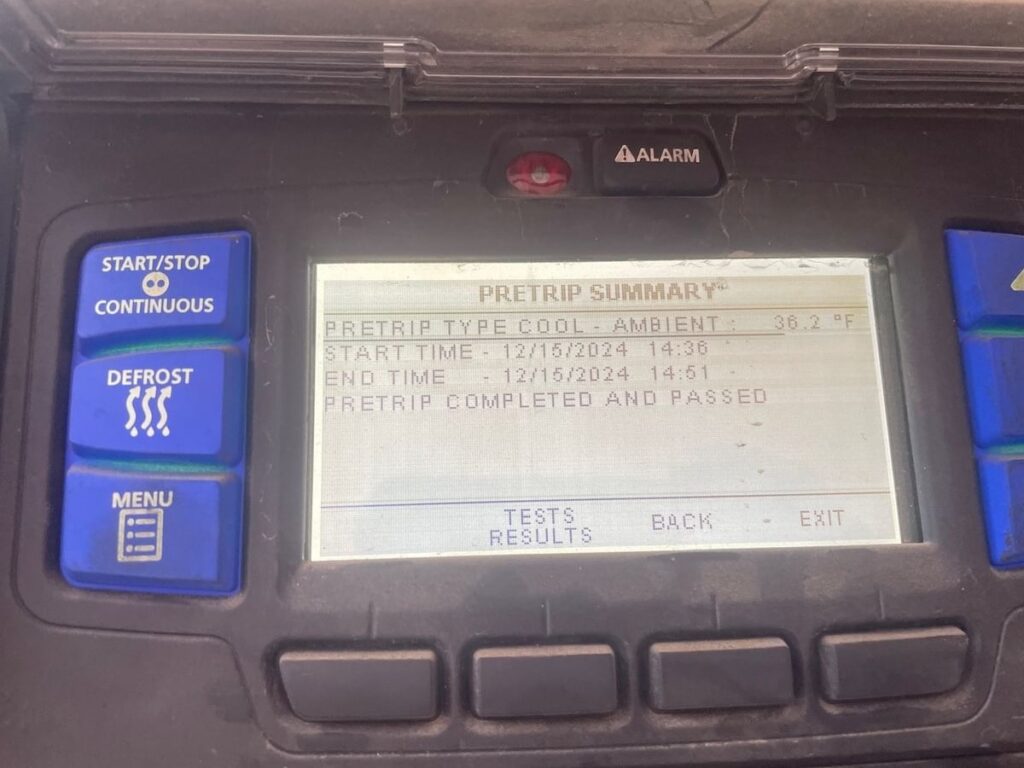

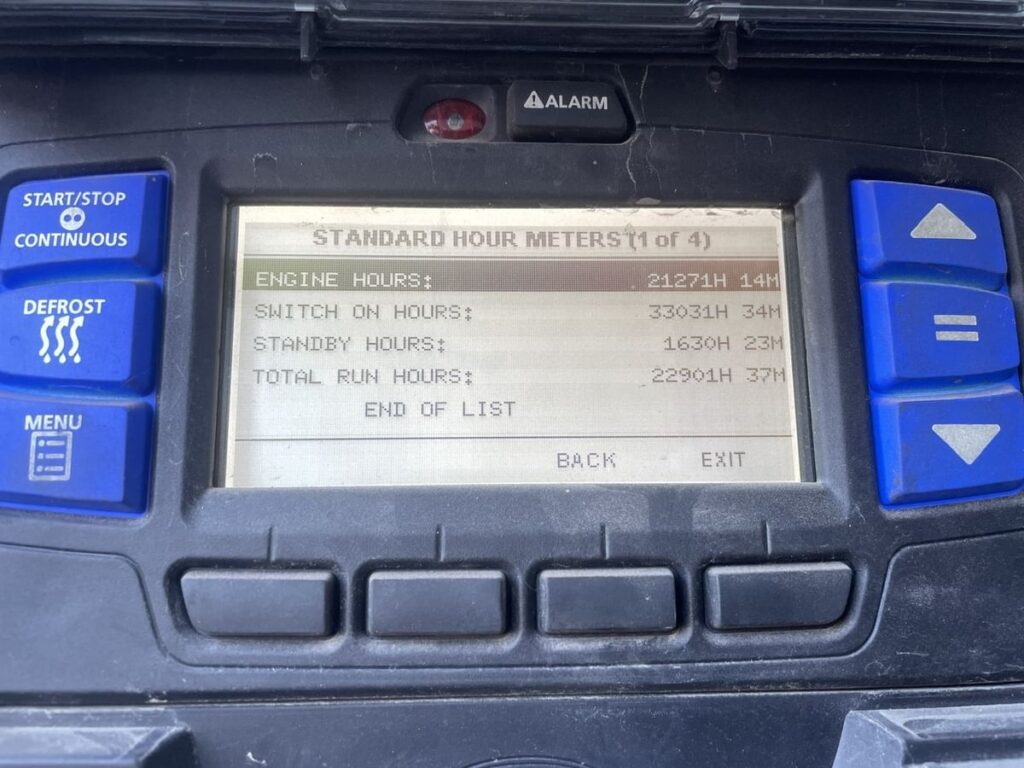

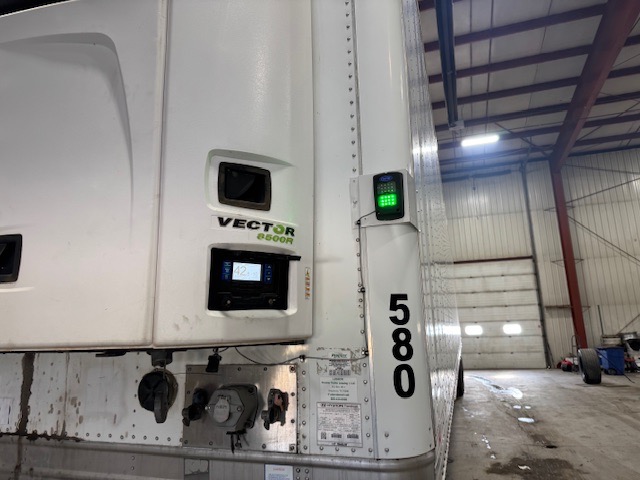

Controls: APX™ Control System with a multilingual graphical display and IntelliSet™ with ProductShield™ Information dashboard.
Telematics: Standard with Lynx Fleet™ telematics platform for remote monitoring and control.
Dimensions:
- Condenser: 76.4″ x 85.7″ x 22.8″.
- Evaporator: 66.3″ x 45.2″ x 8.2″.
Weight: Approximately 1,810 lb (820 kg) including electric standby.
